Step tile forming equipment to Mexico on March 24,2020

Author: Site Editor     Publish Time: 2020-03-25      Origin: Site

Inquire

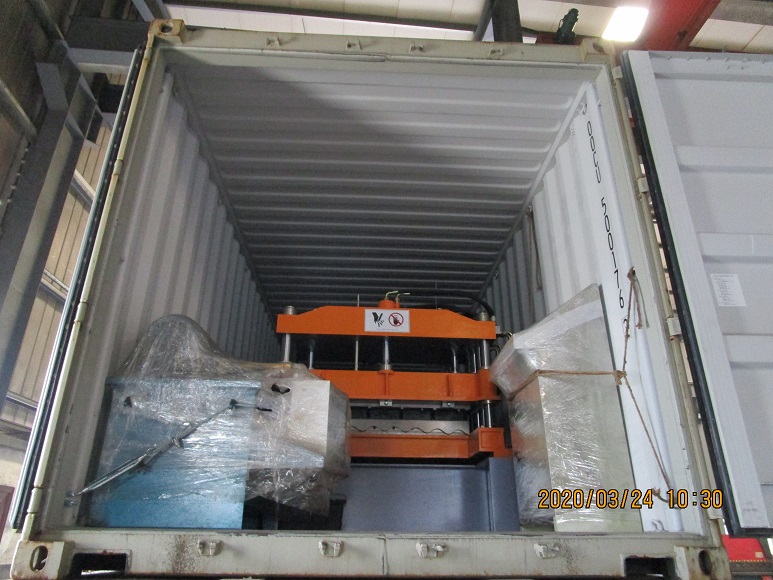

Step tile forming equipment to Mexico on March 24,2020

Zhongyuan step tile roll forming machine


Roof tile forming equipment

Machine style: 1008 roof tile forming equipment

Suitable material for machine: 0.4-0.5mm aluminium coils.

High-speed production speed: 6m per minute.2800m per day for 8 work hours.

Machine color: Blue color. Or custom as buyer want.

Easy operation: two workers can operate it easily, low labor cost for investment.

Payment term: 30% to be paid by T/T as deposit payment, 70% balance paid by T/T or L/C at sight.


Technical data of roof tile forming equipment

Suitable material

color steel coils and aluminium coils;T=0.4-0.5mm

Working speed

About 6m/min

Step distance

adjustable according to requirement (>=250mm)

Power Requirement

Main motor power: 5.5 Kw(Depend on final design)

Hydraulic station power: 5.5Kw(Depend on final design)

Material of forming rollers

No.45 steel, plated with chrome on surface.

Material of cutter,pressing die

Cr12 mould steel with quench treatment, HRC58-60

Material of shaft

High quality 45# steel, Dia. is 72mm.

Roller grinder milling.

Shaft diameter

72mm

Transmission

 Chain

Controlling system

Mitsubishi PLC & converter

Total weight of machine

About 9500KGS

Machine’s size

about 101.8m× 1.7m (Depend on final design)
